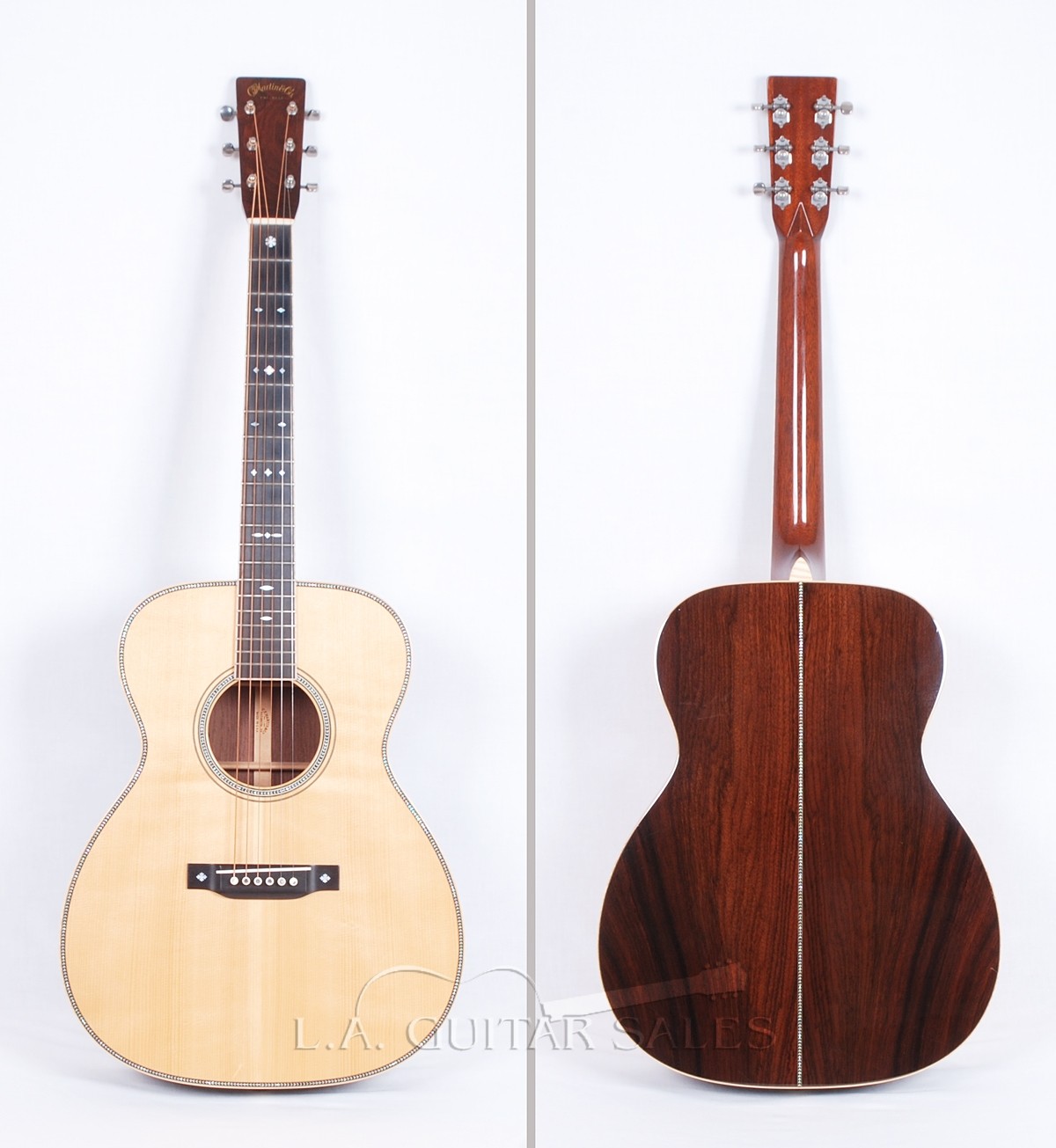

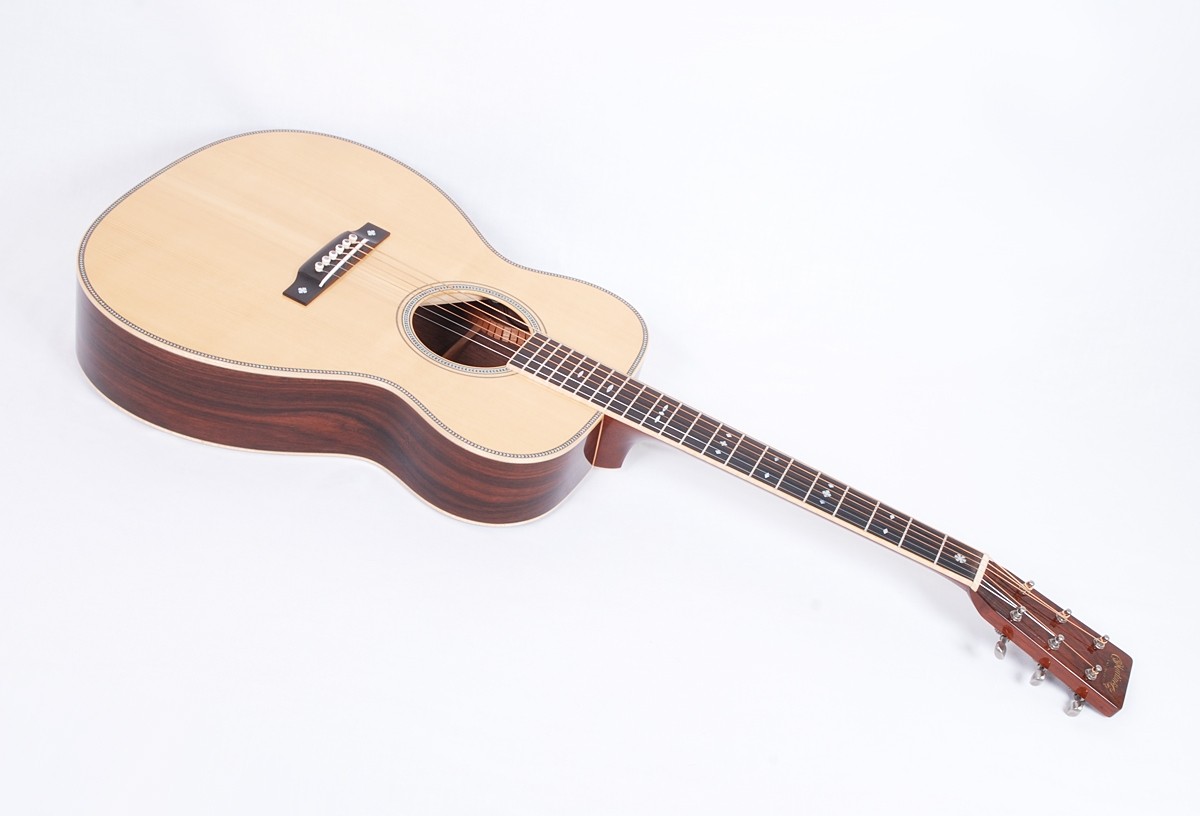

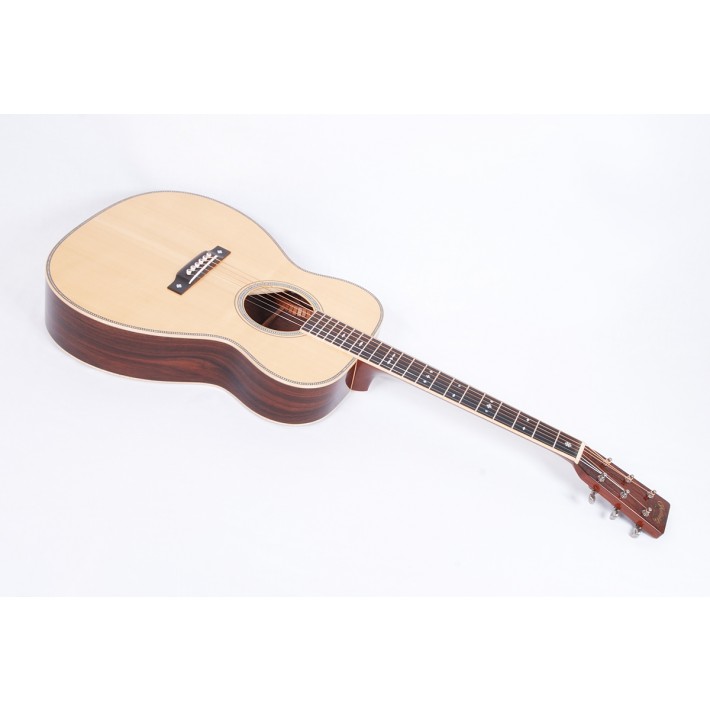

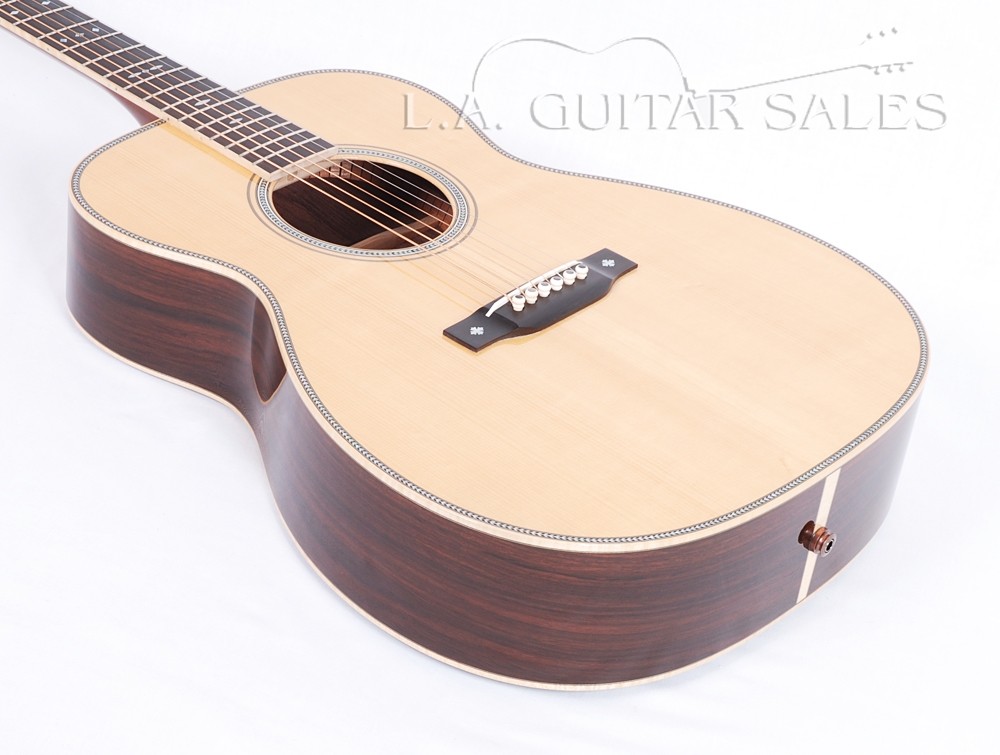

This is one of the rare Custom Shop 0000's Dick Boak dubbed the M5 and it is this guitar that was the inspiration for the Jorma M30 signature model. This was supposed to be a run of 14 guitars but we are told only 7 were completed, one of which Dick Boak lent to Jorma who fell in love with the guitar instantly. Jorma ended up buying that borrowed M5, and during his next visit to Martin he and Dick drew up the specs for a slightly watered down version of the M5 that became the M30 Jorma signature model.

Full specs are as follows:

SPECIAL INSTRUCTION: Large Soundhole
LABEL: None
CONSTRUCTION: Standard; Mahogany Blocks;Dovetail Neck Joint
BODY SIZE: 0000-14 Fret
TOP: Adirondack Spruce
TOP GRADE: 5-6
TOP BRACES: Adirondack/Scalloped 5/16''/Standard
PATTERN: J0000LE-#2B
TOP BINDING: 5/32" European Flamed Maple
TOP INLAY: .042'' B/M/B Fiber /100'' Poly/.027'' B/M/B Fiber
TOP PEARL: Herringbone Pearl
ADDITIONAL TOP INLAY: No Pearl inlay around FGBD. on top

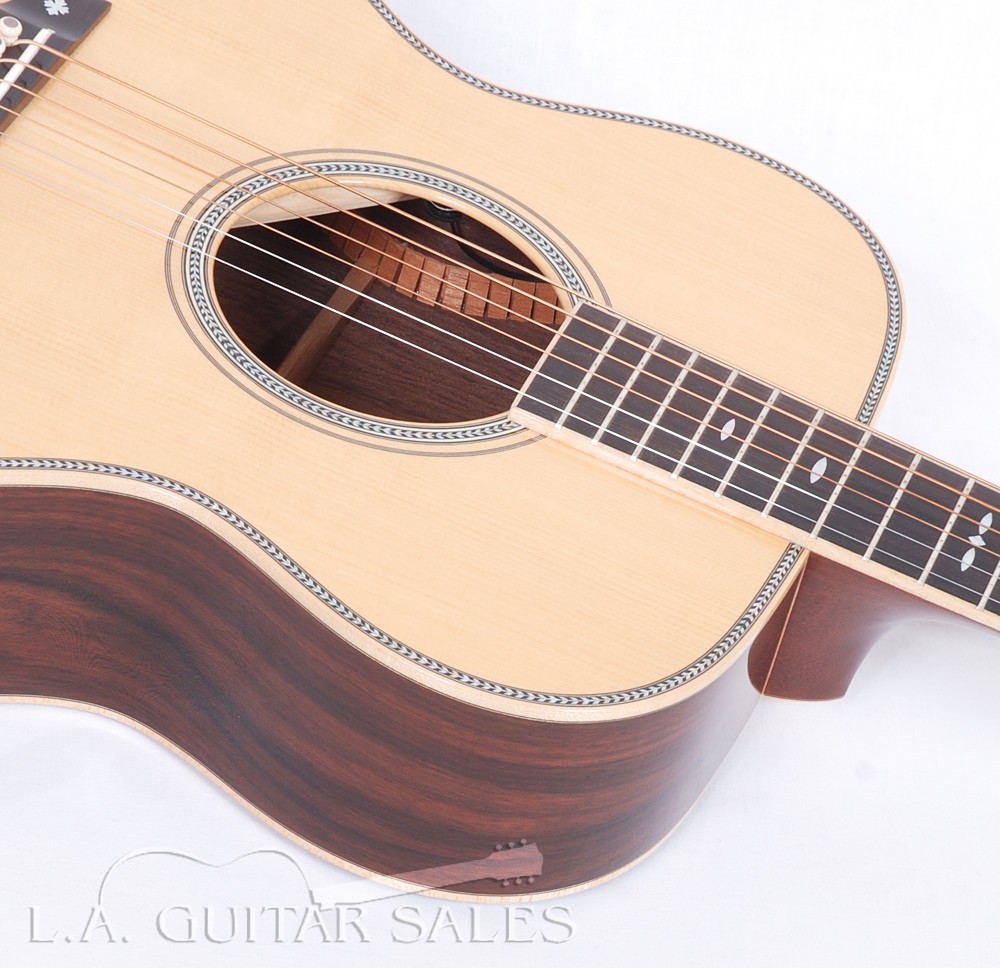

ROSETTE: Style 45 - Wood Fiber Inlays
PEARL INLAY: Herringbone Pearl
ADDITIONAL ROS. INLAY: None
PICKGUARD: NONE
PEARL INLAY: None

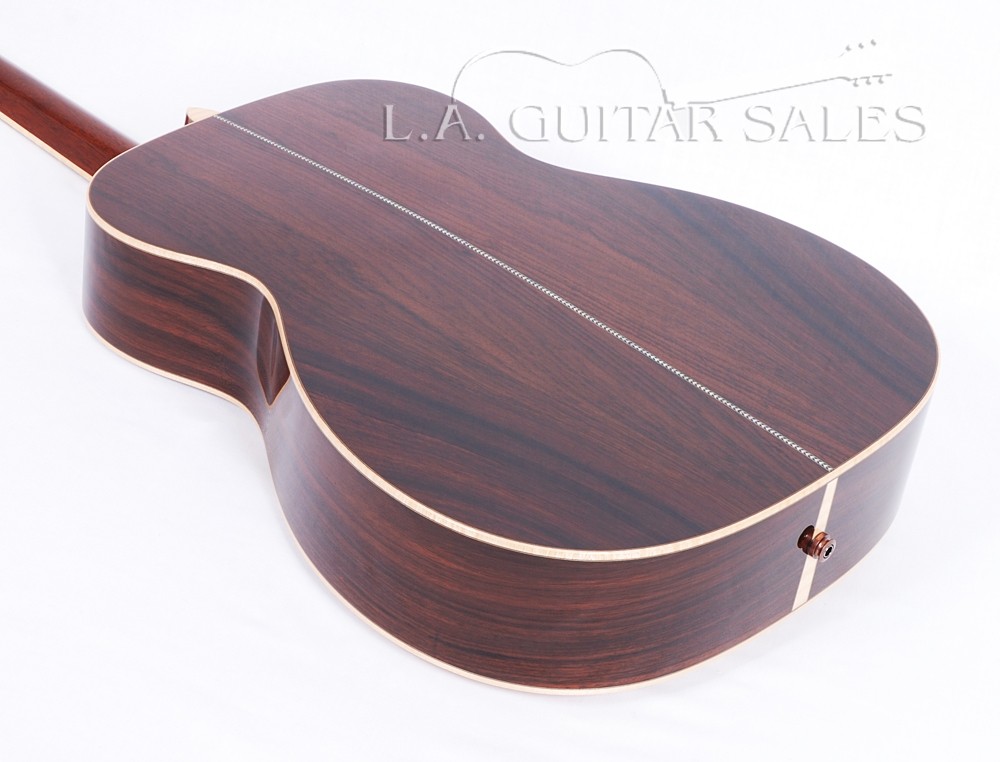

BACK: Wild Grain East Indian Rswd
BACK PANELS: 2 Pc.
PURFLING: Herringbone Pearl w/ B/M/B Inlay on Each Side
CENTER STRIP/LOC. STAMP: Sitka Spruce (C.F. Martin & Co. Nazareth, PA Made In U.S.A. Stamp Between 1st & 2nd Brace)
CAUTION STAMP: None

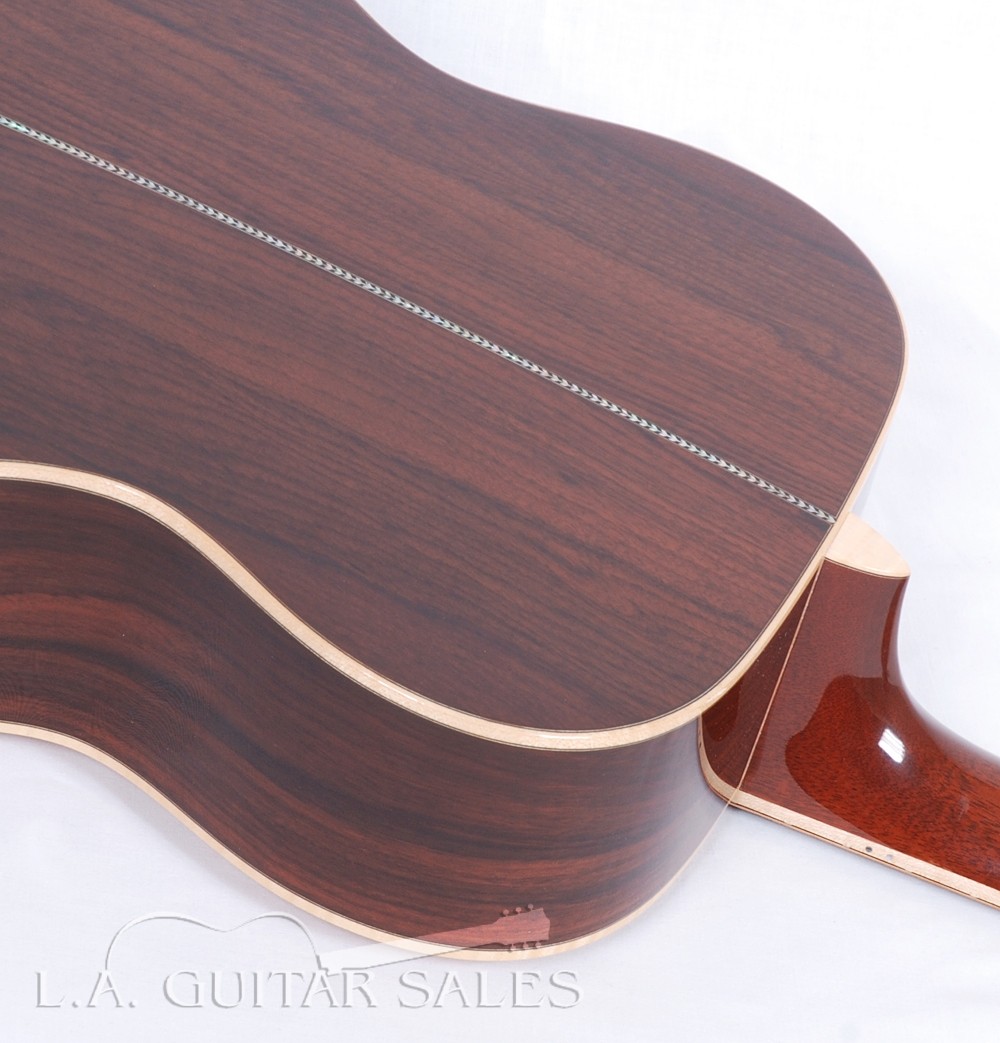

BACK BINDING: 5/32'' European Flamed Maple
BACK INLAY: .045" Black/Maple/Black Fiber
BACK PEARL: None
ADDITIONAL BACK INLAY: None
SIDES: Wild Grain East Indian Rswd
SIDE INLAY: .042" B/M/B Fiber
SIDE PEARL: None
ADDITIONAL SIDE INLAY: Flame Maple B/M/B inlay mitered along neck
ENDPIECE: European Flamed Maple
ENDPIECE INLAY: .042" B/M/B Wood Fiber
ENDPIECE PEARL: None
ADDITIONAL EP INLAY: None
BLOCK: Solid Mahogany
TAG/PLATE: None
REAR: 000 Mahogany
FRONT: 00014 Fret Adjustable Mahogany
Line 1: C. F. Martin Logo
Line 2: CUSTOM
Line 3: Serial #
NECK: Genuine Mahogany- 10/4 w/ Wings
NECK SHAPE: Modified-V

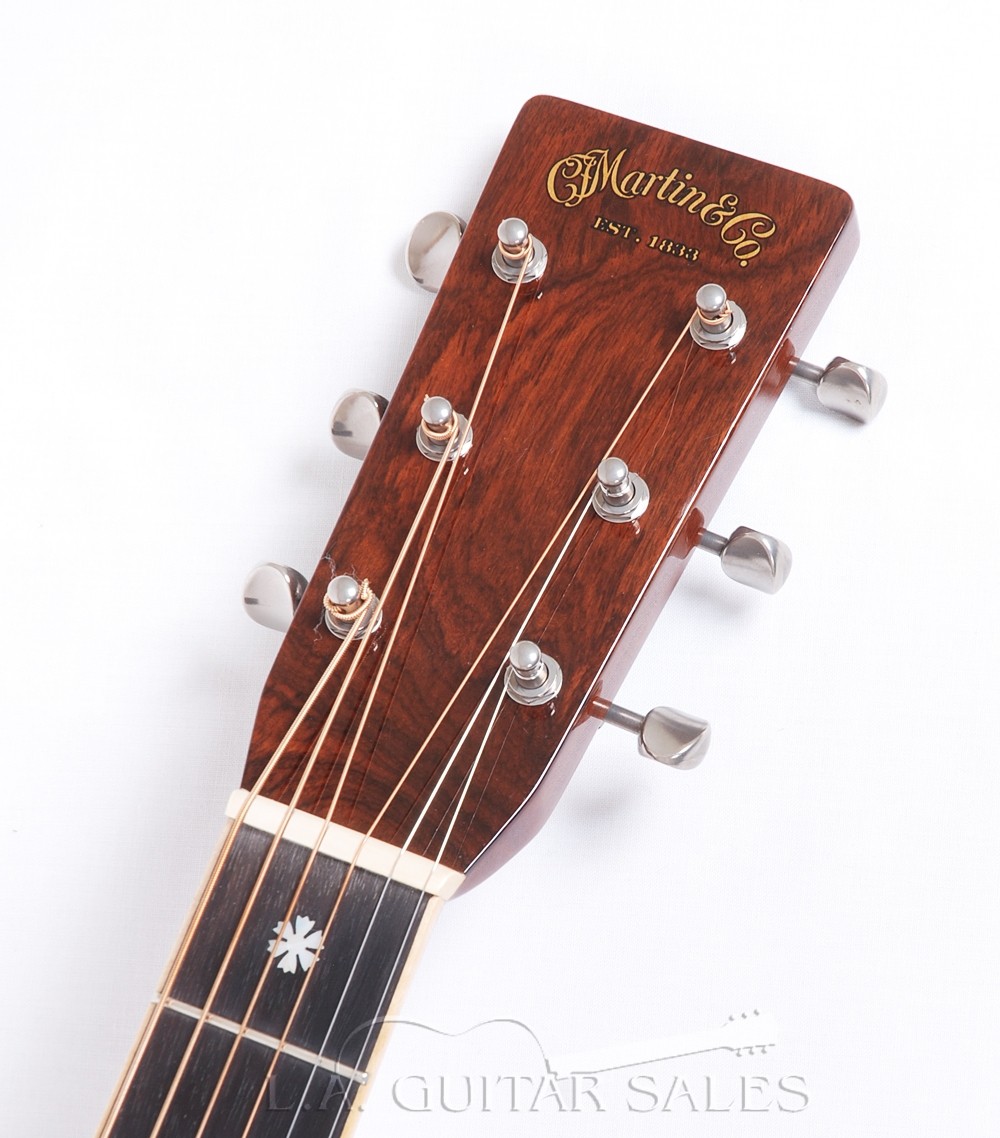

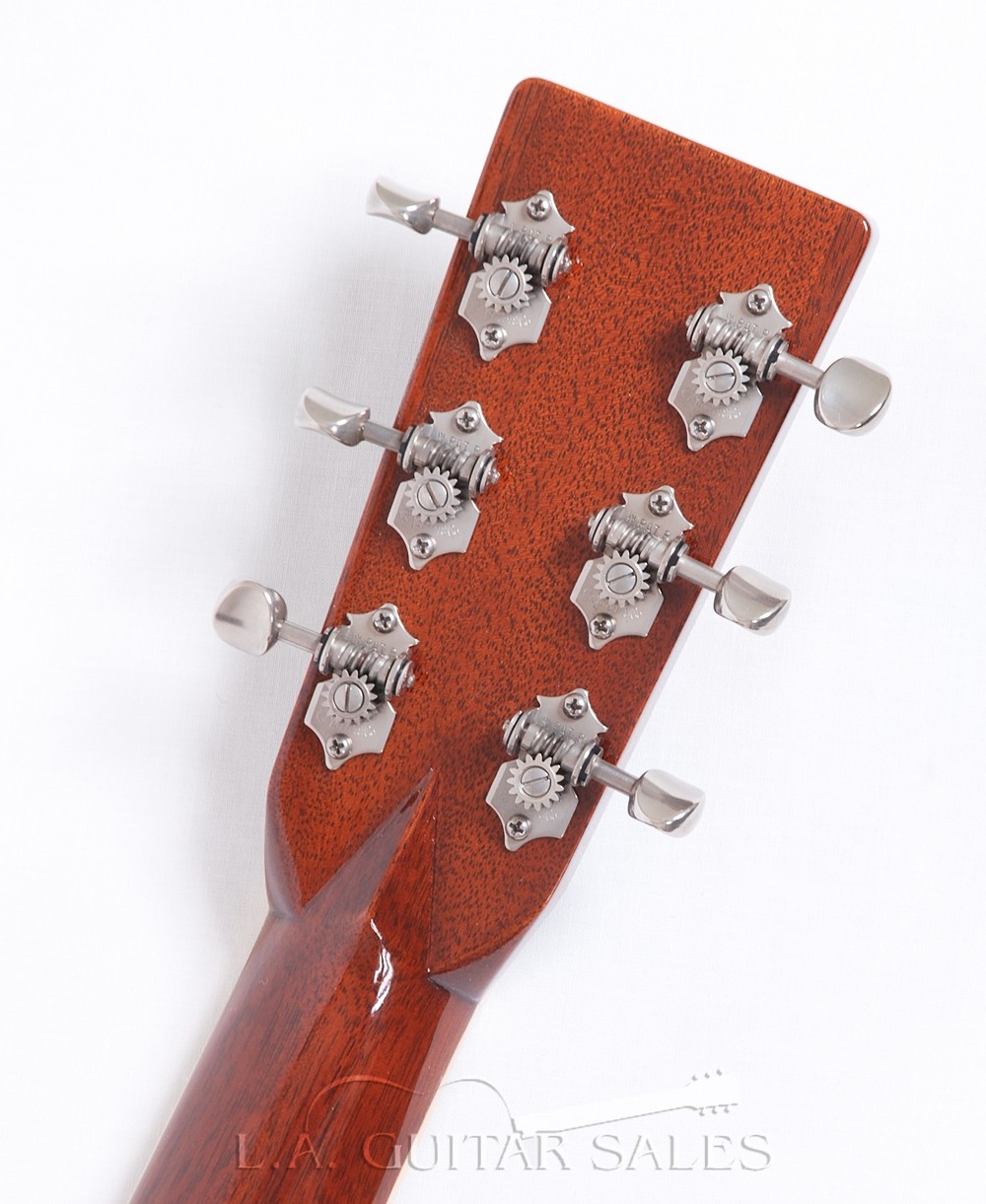

HEADSTOCK: Solid/6 String Diamond/Square Taper
BACK/HEAD STAMP: None
TRUSS ROD: Adjustable
HEELCAP: European Flamed Maple with B/M inlay
NUT: Fossilized Ivory
ON ANGLE/FLAT: On Angle
HEADPLATE: Wild Grain Indian Rosewood
HEADPLATE DECAL: Old Style (Large) (Golden Era)
HEADPLATE BIND: None
HEADPLATE INLAY: None
HEADPLATE PEARL: None
ADDITIONAL HP INLAY: None
TUNING MACHINES: Gotoh Nickel SD770XN-05 Open Gear (Drill 11/32'')(Coating covers tuner&bushing)
FINGERBOARD: Black Ebony
RADIUS: 16''
SCALE LENGTH: 25.4''
WIDTH AT NUT: 1 3/4''
WIDTH AT 12 FRET: 2 1/4''
FRET WIRE: G-300
FRETS CLEAR: 14
TOTAL FRETS: 20
FINGERBOARD BIND: European Flamed Maple (Mitered)
FINGERBOARD INLAY: None
PEARL INLAY: Style 45 Snowflakes MOP
ADDITIONAL FB INLAY:
SIDE DOTS: 2mm Abalone Pearl
SIDE DOT POSITION: One at 3rd, 5th, 7th, 9th, Two at 12th, One at 15th & 17th Frets
FINISH TYPE: Full Gloss
FINISH BODY: Non-Catalyzed Gloss/ Dark Filler
FINISH TOP: Non-Catalyzed Gloss
FINISH NECK: Non-Catalyzed Gloss/ Dark Mahogany Stain/ Dark Filler
BRIDGE: Black Ebony
STYLE: 1930 Style Belly w/Long Saddle
PEARL INLAY: Four Point Snowflakes (MOP)
ADDITIONAL BR INLAY: None
STRING SPACING: 2 5/16''
SADDLE: 16" Radius/Fossilized Ivory
ELECTRONICS: L.R. Baggs iBeam
STRAP BUTTON: None
STRINGS: MSP 4200 Medium Phosphor Bronze
BRIDGE PINS: Fossilized Mammoth or Walrus Ivory w/ 4.8mm Black Pearl Dots
END PIN: Fossilized Mammoth or Walrus Ivory w/ 4.8mm Black Pearl Dot

This guitar was part of a large collection so it is in excellent condition with zero issues to mention. Current list for these specs are $12,000.

Product Question

* Required Fields

New/Pre-Owned: Sold
Condition: Excellent

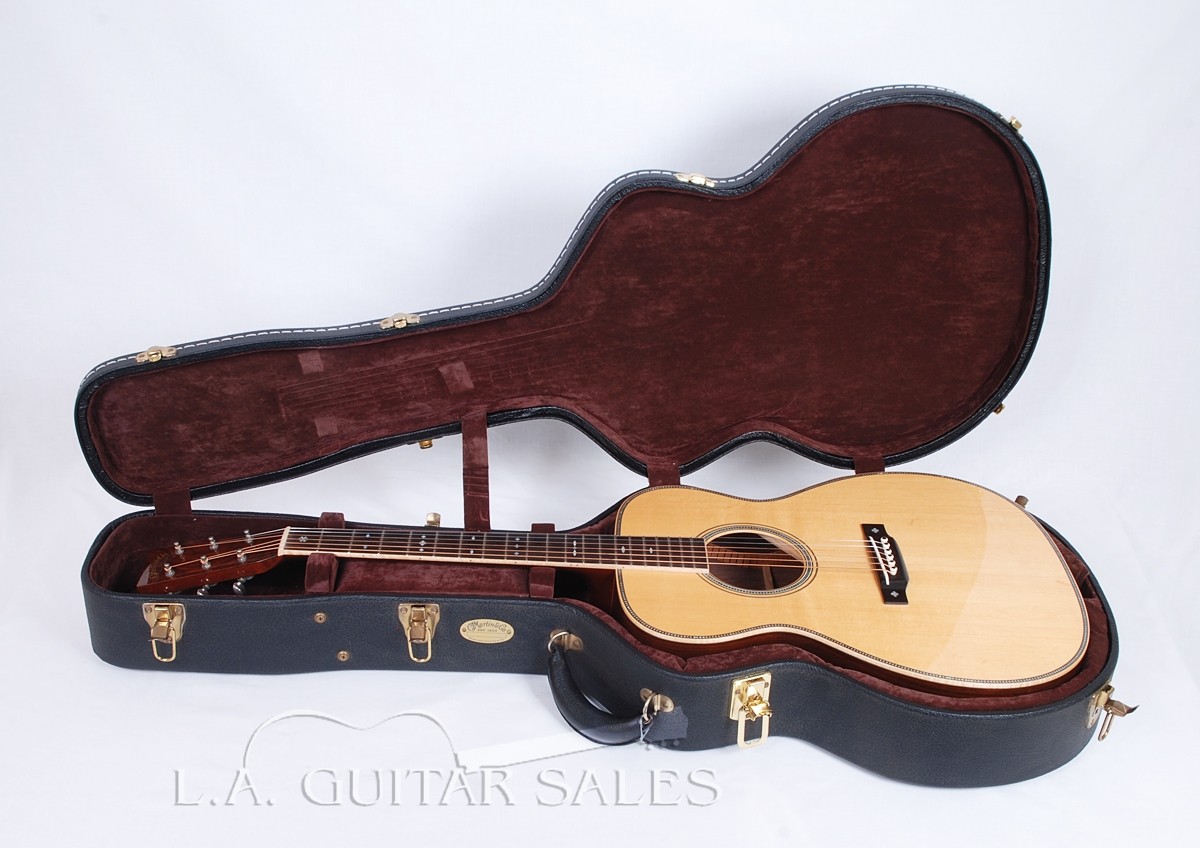

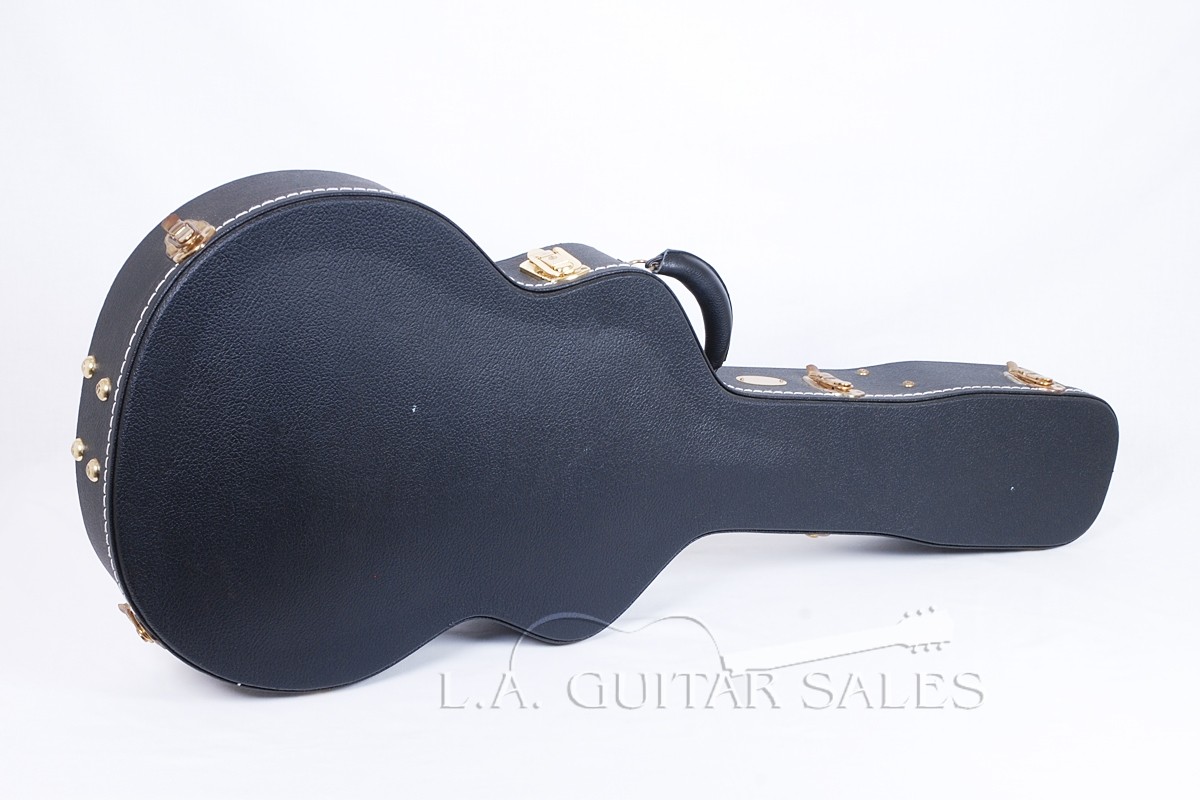

Martin M5 Boak / Jorma Custom Shop 0000 with Case
